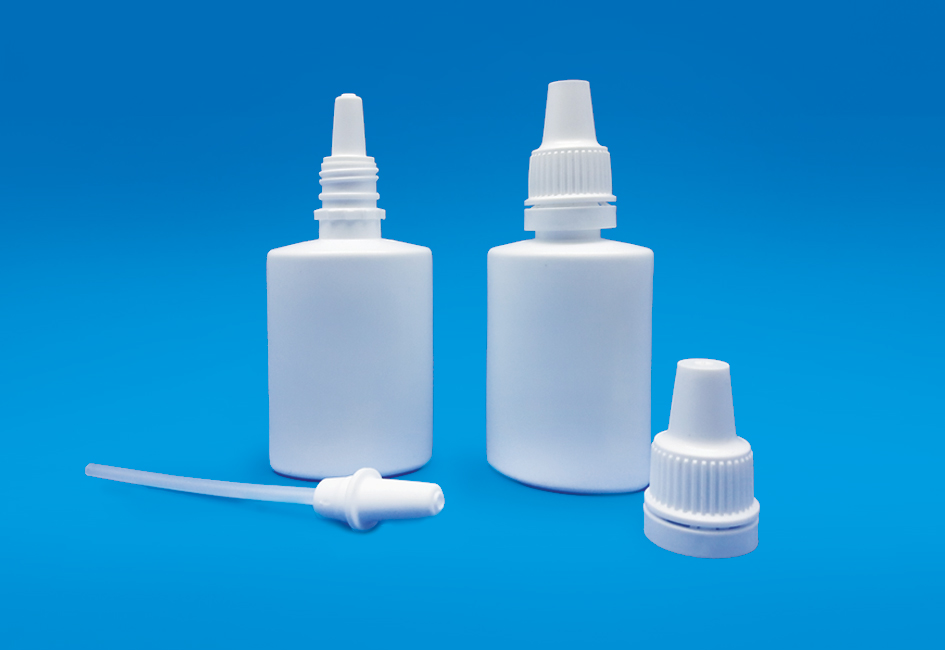

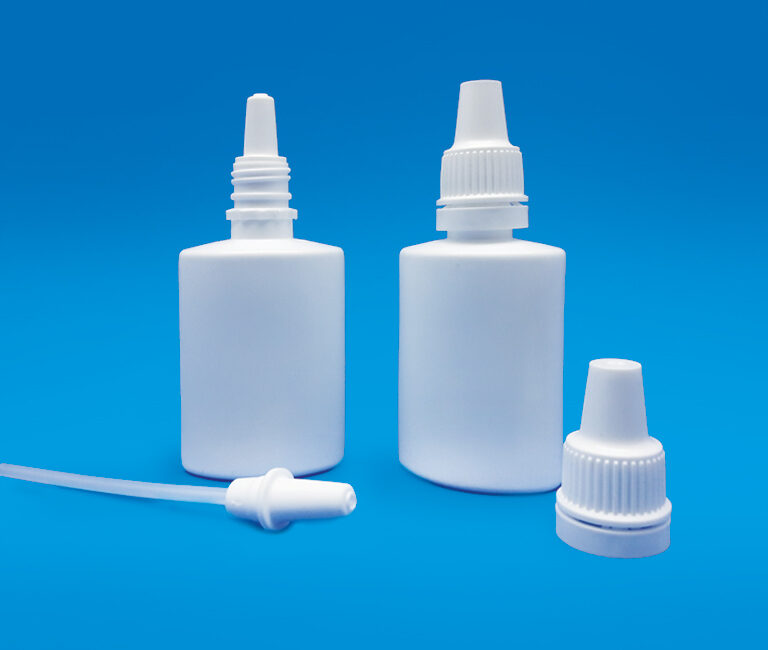

Fs2-30 Spray Bottle

Fs2-30 Spray Bottle with Squeeze Operation

The Fs2-30 spray bottle is a plastic packaging system for liquid medicines, including nasal preparations. It combines a squeezable bottle, a sprayer and a tamper-evident cap. Pressing the centre of the bottle body delivers the liquid through the sprayer.

The model has a nominal capacity of 30 ml. However, the liquid fill volume must not exceed 20 ml for functional spraying. Account for this limit when developing the finished product and selecting its declared fill volume.

How squeeze spraying works

The user squeezes the central part of the bottle to deliver liquid through the sprayer. Therefore, the bottle body plays an active role in dispensing. During packaging selection, assess both ease of squeezing and spray performance with the intended formulation.

If the product requires a defined volume per spray, confirm that performance through testing. Also evaluate how squeezing force, bottle position and the remaining liquid affect operation.

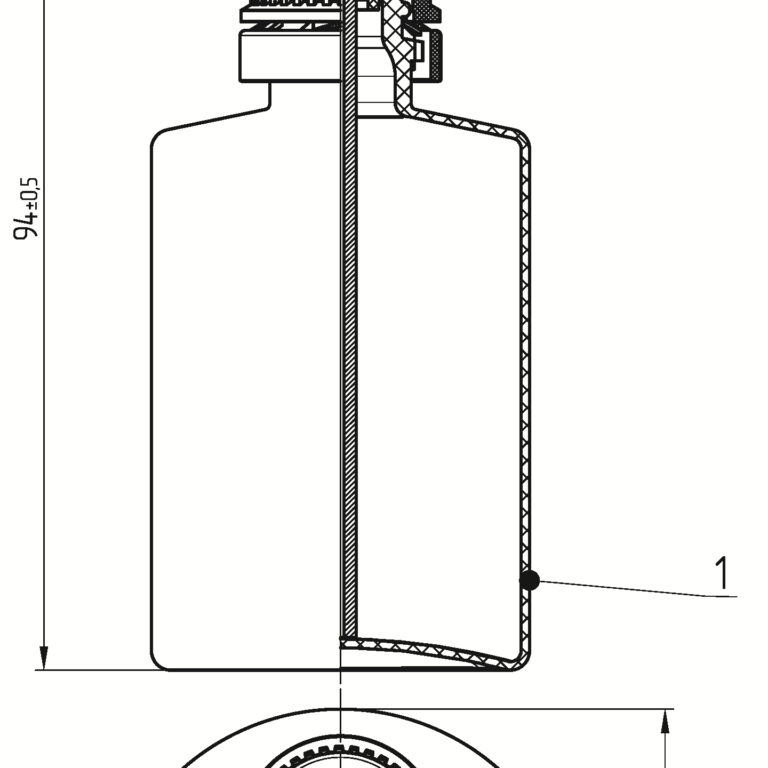

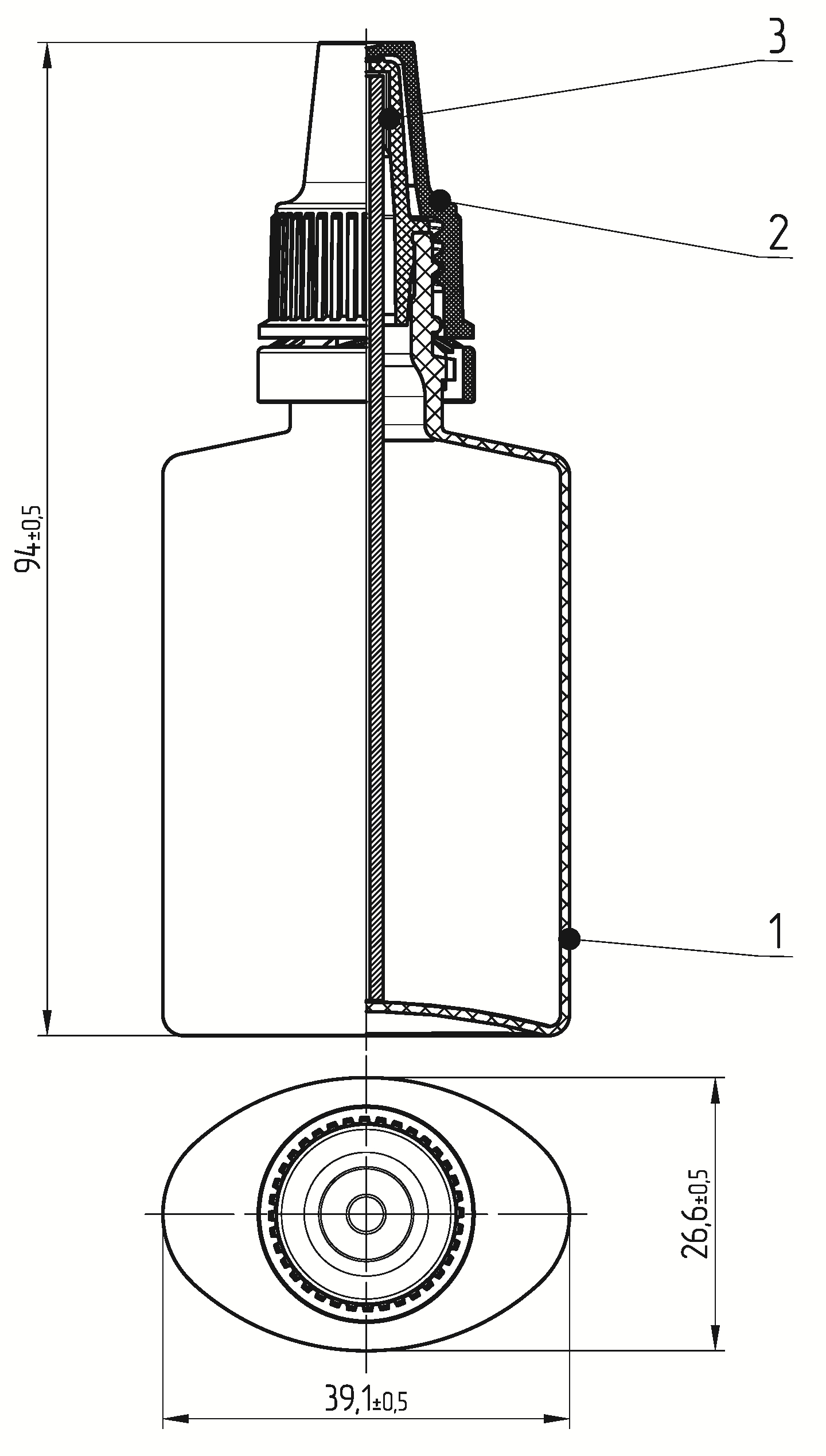

Fs2-30 spray bottle components

Each component has a specific role. The bottle holds the product and delivers it when squeezed. The sprayer forms the spray, while the cap covers it between uses.

The tamper-evident feature provides a visible indication of first opening. Before approving the assembled pack, check correct cap application and the operation of this feature.

Key specifications

• Product code: Fs2-30
• Type: squeezable plastic spray bottle
• Nominal capacity: 30 ml
• Maximum liquid fill volume for spraying: 20 ml
• Operation: squeeze the centre of the bottle body
• Components: bottle, sprayer and cap
• First-opening indication: tamper-evident cap

Component transport packaging

These quantities apply to each component separately. When ordering complete sets, agree the required balance of bottles, sprayers and caps in the shipment.

Preparing for filling and ordering

Before commercial use, check formulation compatibility, leakage and sprayer operation using the complete system. In addition, trial sprayer and cap assembly on your equipment. Set up the filling process to respect the maximum liquid volume of 20 ml.

For pharmaceutical projects, consult the EMA guideline on plastic primary packaging materials. It addresses requirements for materials that come into contact with medicines.

When contacting Farmmash, specify the formulation, planned fill volume and number of sets. Also agree spray requirements, component supply arrangements and delivery timing. Explore the Farmmash plastic bottle range to compare other packaging options.
