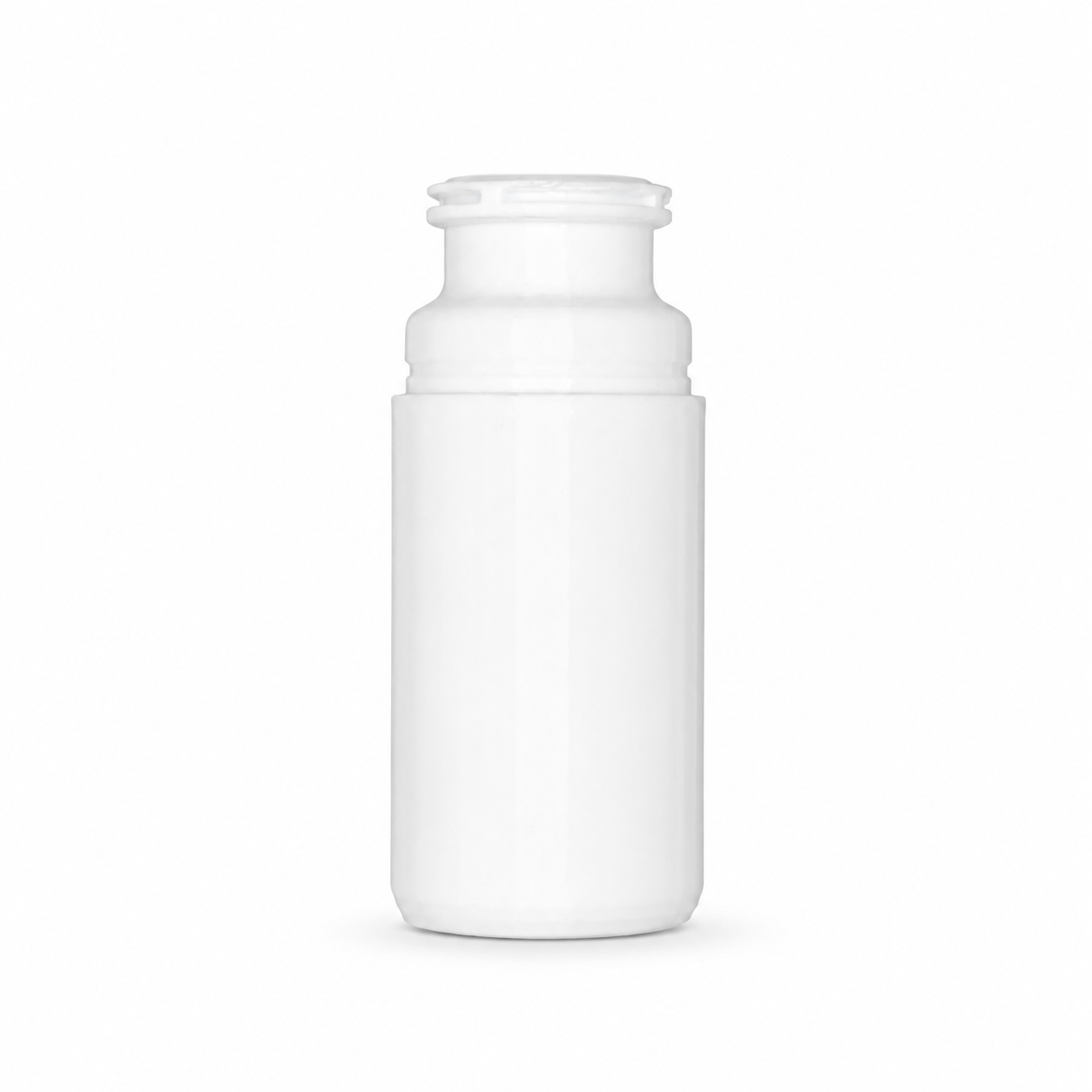

PE Bottle FCR-23-0125 DIN20 Crimp, 23 ml

PE Bottle FCR-23-0125 DIN20 Crimp for Pharmaceutical Packaging

PE bottle FCR-23-0125 DIN20 Crimp by Farmmash is a compact polyethylene bottle with a nominal capacity of 23 ml. It is designed with a DIN20 Crimp neck for use with compatible crimp-on closure or dispensing components.

The bottle can be integrated into pharmaceutical and healthcare packaging projects where a small-volume polymer container and a DIN20 Crimp configuration are required.

According to the Farmmash product catalogue, FCR-23-0125 is manufactured from polyethylene (PE), has a nominal capacity of 23 ml, and features a DIN20 Crimp neck.

Polyethylene Bottle for Small-Volume Packaging

FCR-23-0125 is manufactured from polyethylene.

Its compact 23 ml format makes the bottle suitable for packaging projects where a relatively small container is required.

The final suitability of polyethylene for a specific formulation should always be evaluated with the actual product, storage conditions and complete packaging system.

DIN20 Crimp Neck Configuration

The DIN20 Crimp neck is intended to work with compatible crimp-on packaging components.

Unlike threaded systems, a crimp-on component is mechanically secured around the corresponding bottle-neck geometry.

Correct performance depends on several factors. These include the bottle finish, retaining geometry, sealing surfaces, dimensions of the selected component and settings of the closing equipment.

For this reason, the DIN20 designation alone should not be considered confirmation that every DIN20 component is compatible with FCR-23-0125.

Farmmash recommends testing the actual bottle and selected closure or dosing component together before serial production.

Nominal Capacity of 23 ml

The nominal capacity of the bottle is 23 ml.

The required filling volume should be determined according to the formulation, filling process, necessary headspace and selected packaging component.

Nominal bottle capacity and actual product fill volume are therefore not necessarily identical.

Packaging System Compatibility

The PE bottle FCR-23-0125 DIN20 Crimp should be evaluated as part of the complete packaging system.

During packaging development, it is advisable to check:

• fit of the selected crimp-on component;
• sealing performance;
• filling volume and required headspace;
• compatibility between the formulation and bottle material;
• compatibility with filling and closing equipment;
• package performance during storage and transportation.

Customers developing DIN20 packaging can also review the Farmmash PE Bottles DIN20 range and other Pharmaceutical Plastic Bottles to compare available bottle formats.

For general information about DIN standards and standardization, technical teams can also consult the German Institute for Standardization (DIN).

Samples and Technical Support

Farmmash can provide technical information and samples of FCR-23-0125 for packaging trials.

Testing the actual bottle, formulation and selected closure together helps confirm the required packaging configuration before serial production.
