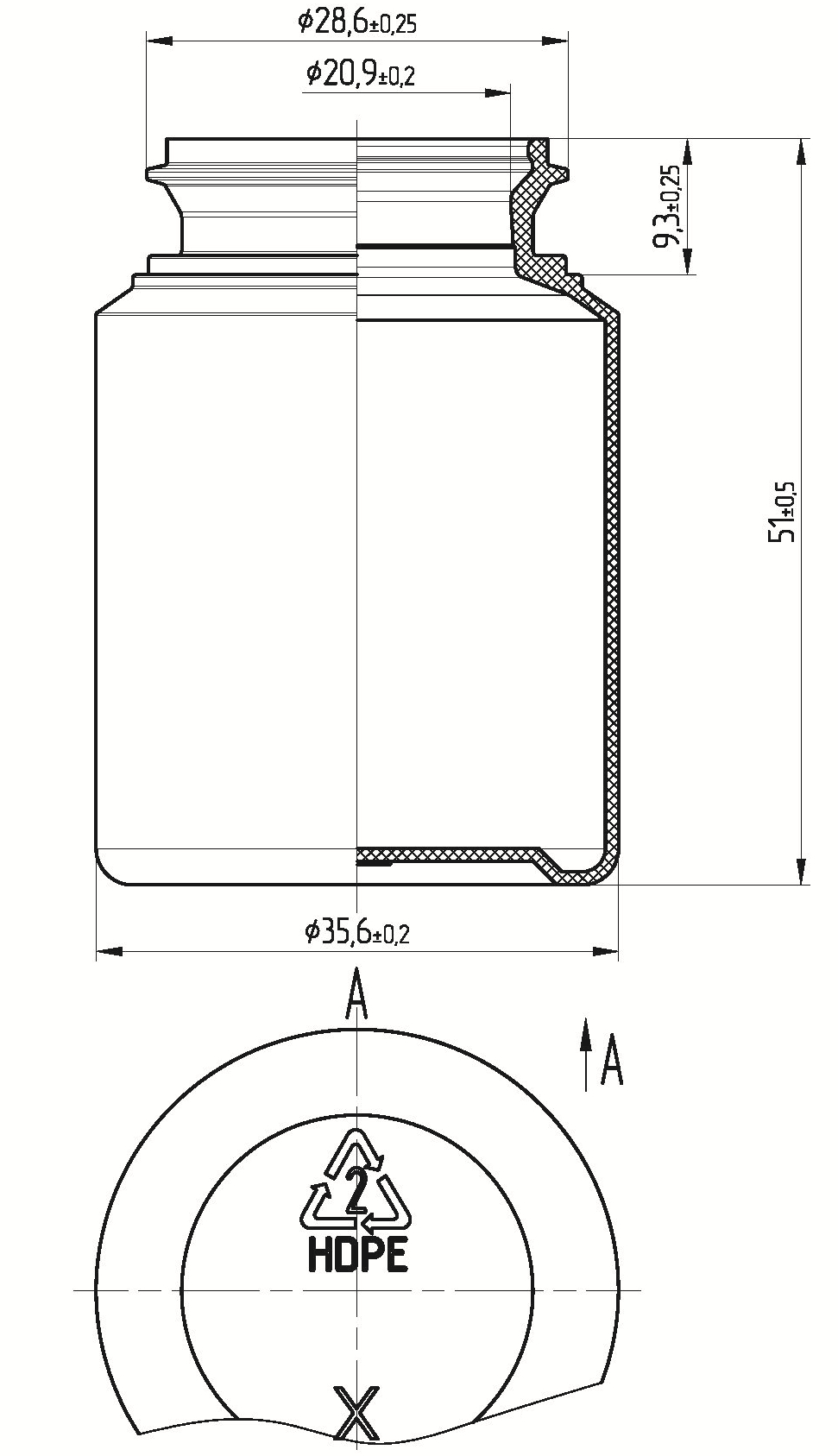

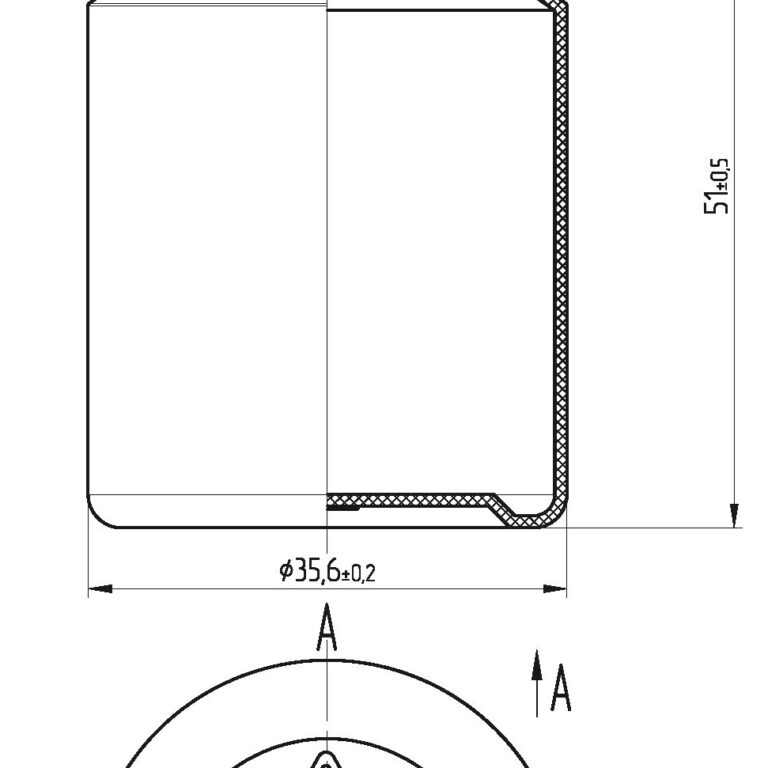

Kp5-45 bottle technical drawing with dimensions

One-piece 1.L snap-on cap with tear-off band, technical drawing

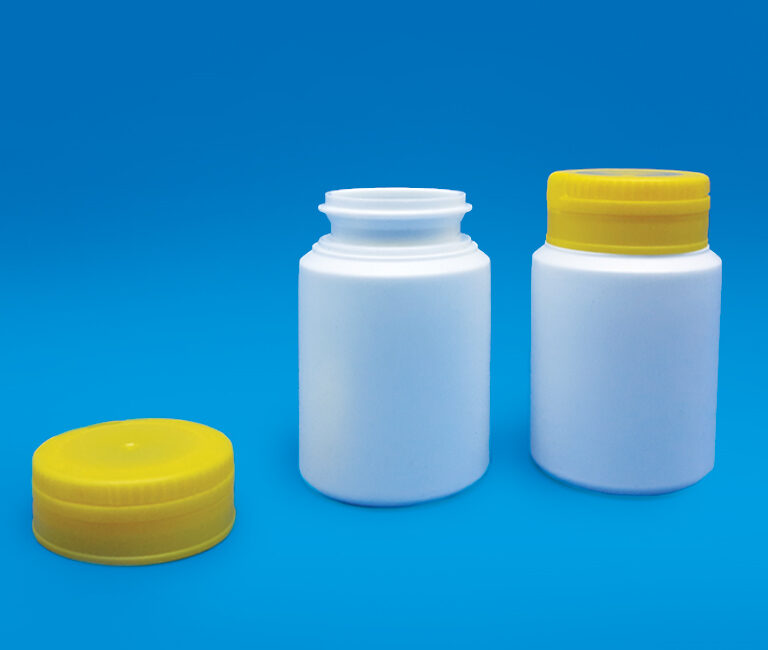

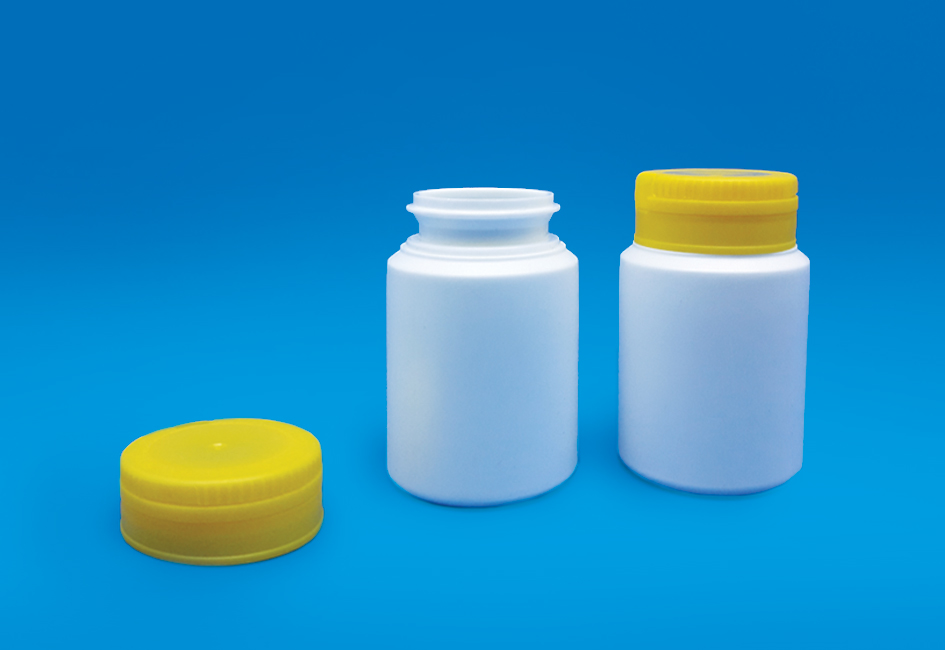

Kp5-45 container set with white HDPE bottles and white and yellow caps

Order a consultation

Kp5-45 Container — Bottle and Cap Set

The Kp5-45 container is a packaging set comprising an HDPE bottle and a one-piece 1.L snap-on cap with a tear-off tamper-evident band. The bottle has a nominal capacity of 30 ml and a maximum capacity of 45 ml.

This format combines a compact cylindrical bottle with a matching closure. It can be considered for pharmaceutical and dietary supplement packaging, subject to compatibility with the intended product.

Bottle and closure design

The bottle is made from high-density polyethylene (HDPE). Its cylindrical body provides space for a product label, while the neck incorporates features that retain the snap-on cap.

The one-piece cap includes an integral inner sealing skirt. This element fits inside the bottle opening when the cap is applied. The closure also features a tear-off band that provides visible evidence of first opening.

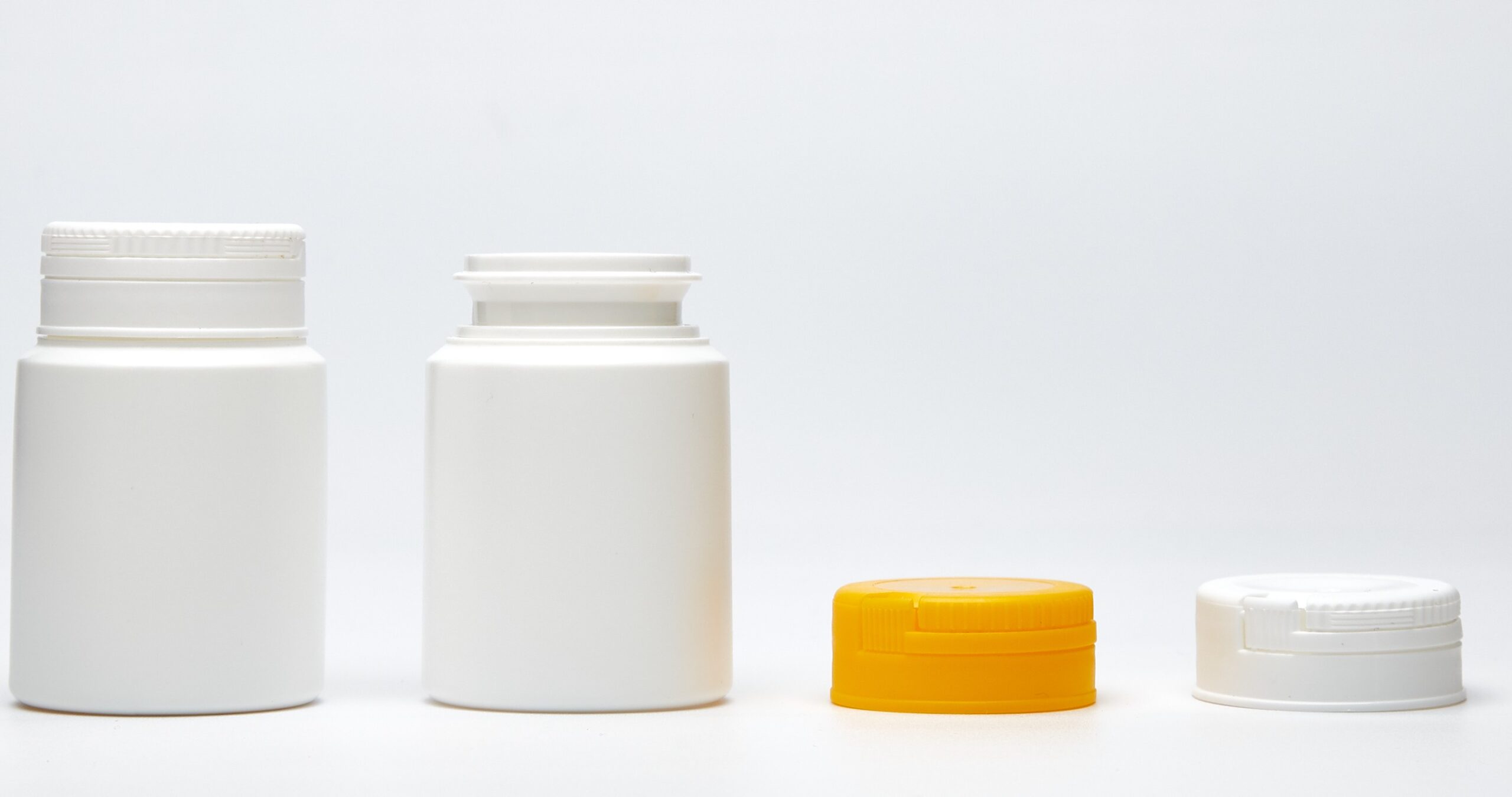

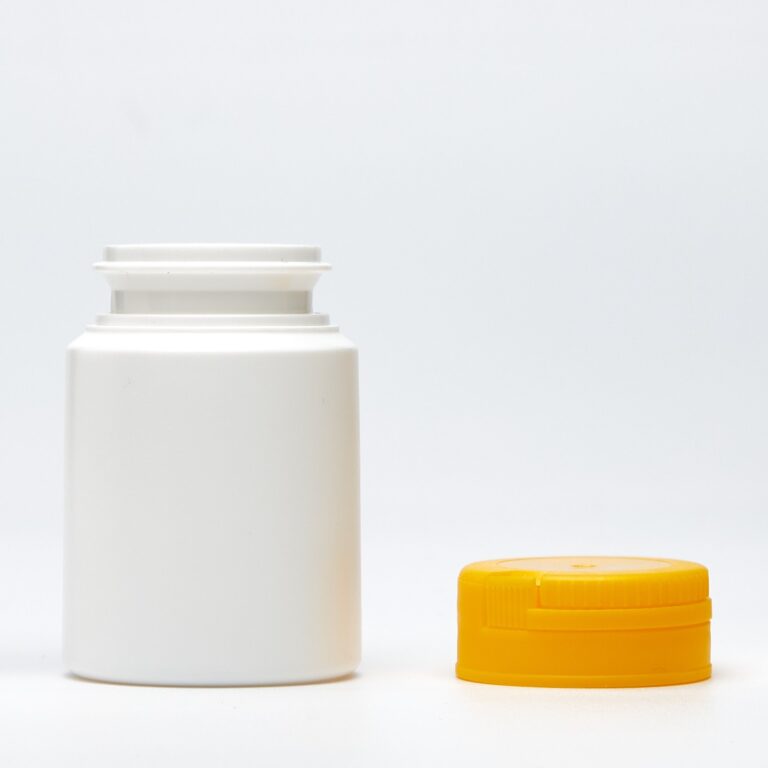

The product photograph shows white bottles alongside white and yellow caps. Specify the required cap colour when discussing your order.

Capacity and application

The nominal capacity is 30 ml, while the maximum capacity is 45 ml. These values serve different purposes when selecting packaging and planning the fill volume.

For a specific formulation, assess the bottle and cap together. The evaluation should cover material compatibility, closure integrity and performance under the intended storage conditions. In addition, check how the complete set performs on the filling and capping equipment.

For pharmaceutical projects, the EMA guideline on plastic immediate packaging materials provides a reference for assessing materials in direct contact with medicines.

Kp5-45 container specifications

Parameter	Specification
Set contents	One bottle and one 1.L cap
Bottle material	High-density polyethylene (HDPE)
Nominal capacity	30 ml
Maximum capacity	45 ml
Closure type	Snap-on, with tear-off tamper-evident band
Bottle height without cap	51 ± 0.5 mm
Bottle body diameter	35.6 ± 0.2 mm
Internal neck diameter	20.9 ± 0.2 mm
Bottle weight	6 ± 0.6 g
Cap height	12.65 ± 0.25 mm
Cap outer diameter	30.8 ± 0.2 mm

Dimensions and bottle weight refer to the individual components shown in the technical drawings.

Packaging and ordering

The published carton quantities are 1,000 bottles and 3,500 caps per respective carton. These are separate component quantities. When ordering complete sets, specify the required number of bottles and matching caps in a 1:1 ratio.

To prepare an enquiry, provide the intended product, fill volume, cap colour and required quantity. This information helps define the configuration for evaluation.

Explore other formats in the Farmmash container range.
